Fire Alarm Accessories
Heat Detector
Smoke Detector
Manual Call Point
Response Indicator
Hooter with Strobe

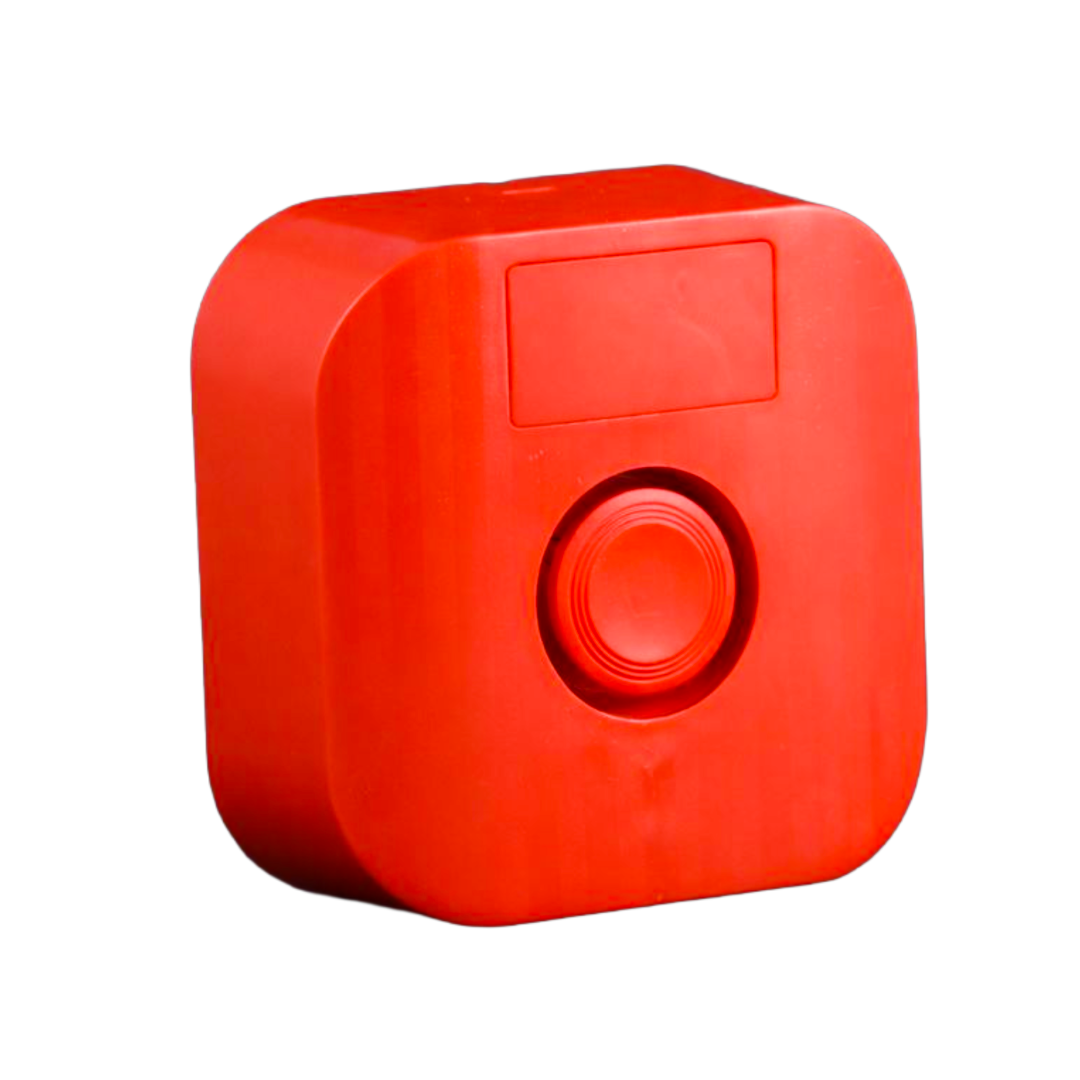

Heat Detector
- Supply Voltage: 9 to 33V
- Alarm current at 24V: 52mA
- Alarm current at 9V: 17mA
- Alarm Indication: Red LED
- Normal Operating temperature (No Condensation or icing): -20 to +90°C
Smoke Detector
- Supply Voltage: 9 to 33V
- Alarm current at 24V: 52mA
- Alarm current at 9V: 17mA
- Alarm Indication: Red LED
- Normal Operating temperature (No Condensation or icing): -20 to +90°C

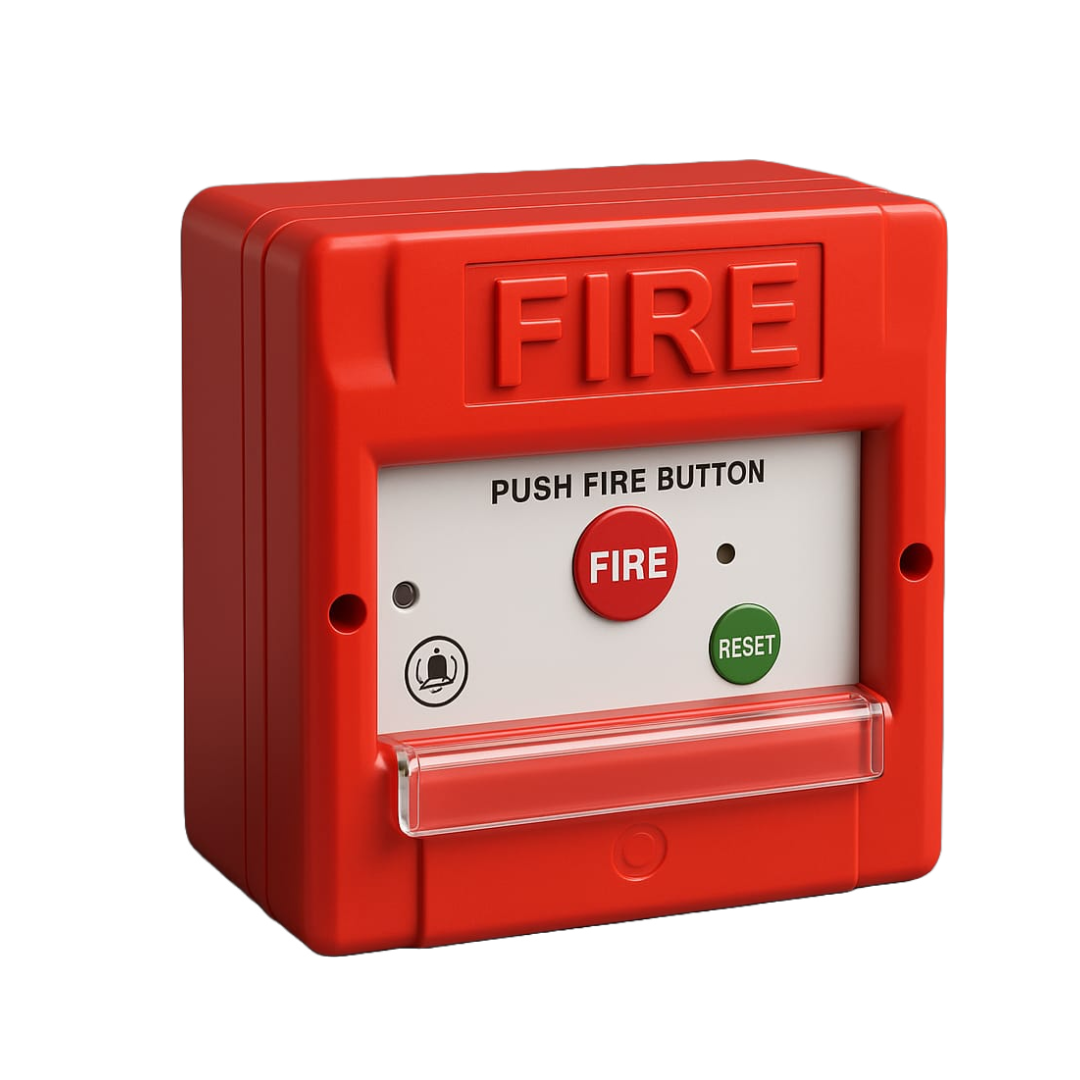

Manual Call Point
- Voltage: 12VDC/24VDC OR 220VAC
- Power: 10W
- Output Type: NO/NC
- Size: 87 x 87 x 51mm
- Color: RED

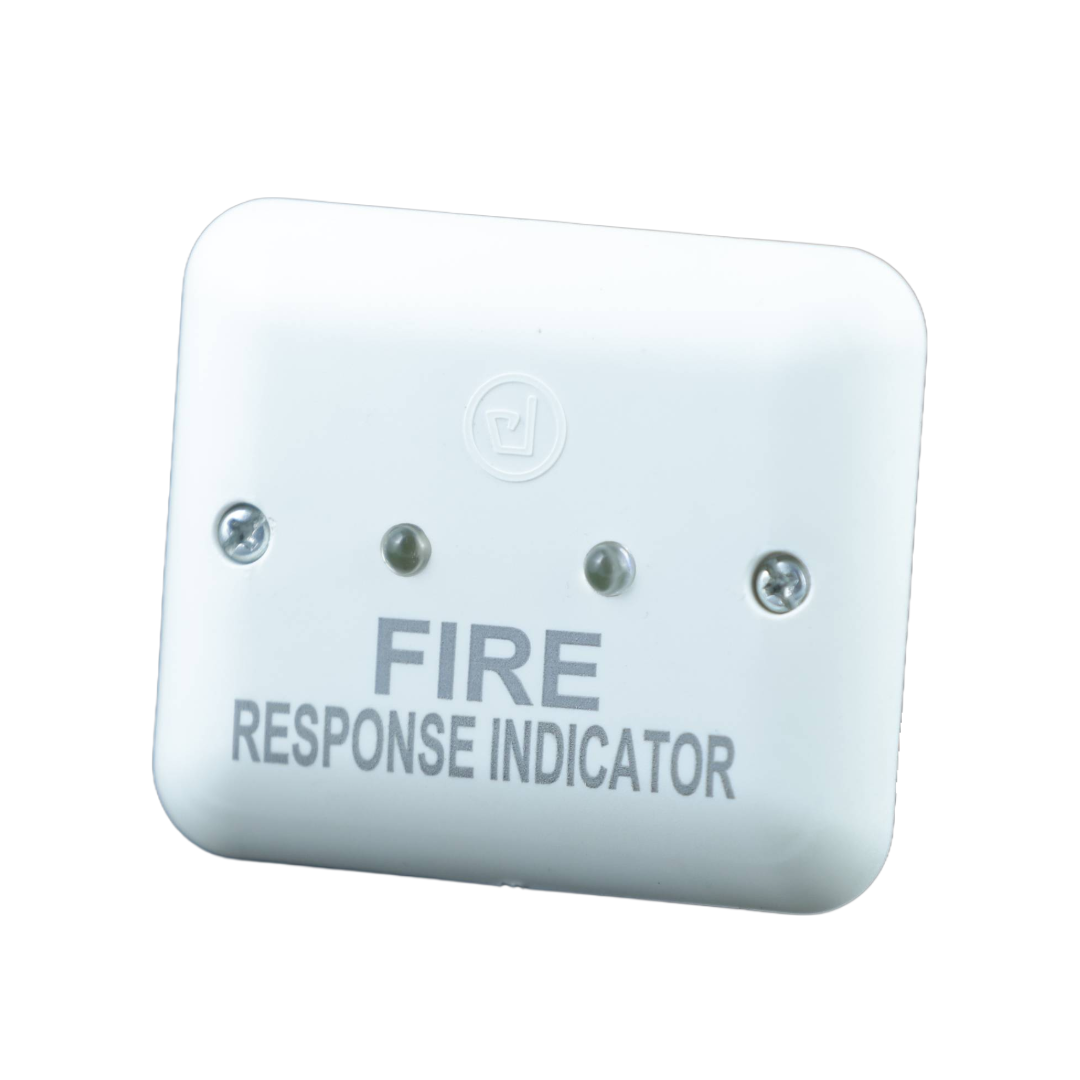

Response Indicator
- Operating Voltage: 12V to 24V DC (Nominal)
- Current Consumption: ≤ 15 mA
- LED Type: Ultra-bright Red LED (steady/glow)
- Mounting: Wall/ceiling surface mount
- Indication: Visual Indication of Alarm Trigger (via LED)
- Input Trigger: From Detector/Control Panel (Potential-free contact)
- Material: ABS Plastic, Flame Retardant
- Color: White (standard)
- Size: Approx. 70mm x 70mm x 35mm
- Wiring: 2-wire / 3-wire compatible
- Compatibility: Works with all conventional detectors
- Operating Temperature: 0°C to +55°C
- Humidity: ≤ 95% RH (non-condensing)
- Mounting Accessories: Screws & wall plugs included

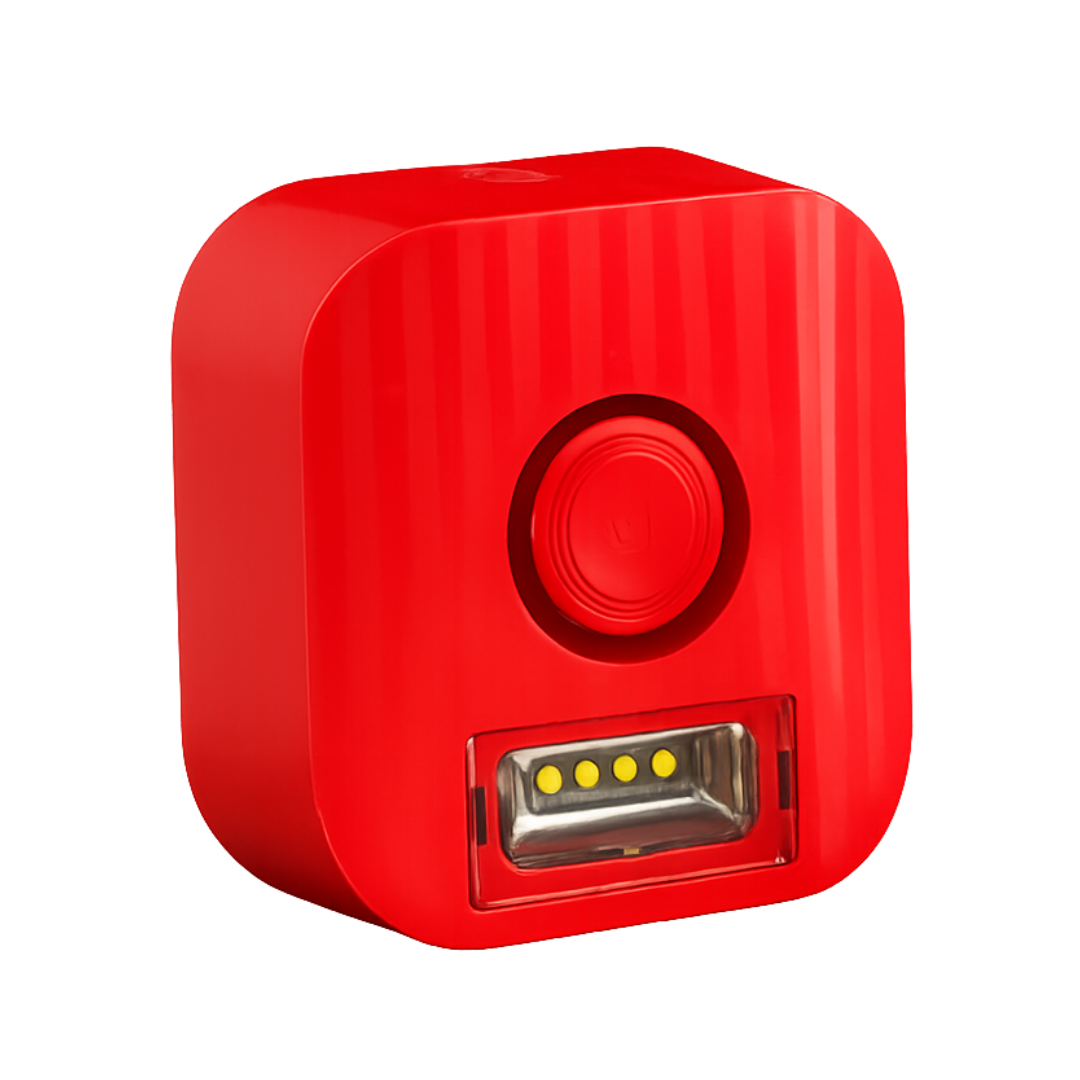

Hooter with Strobe
- Dimensions: 330L x 220W x 60H mm
- Operating Voltage: 15V
- Power Supply: 12V
- Rated Power: 10W
- Maximum Power Consumption: 600mA
- Idle Current: 200mA
- Operational Temperature: -10°C to 40°C
- Battery: 12V / 2.2 Ah
